Application

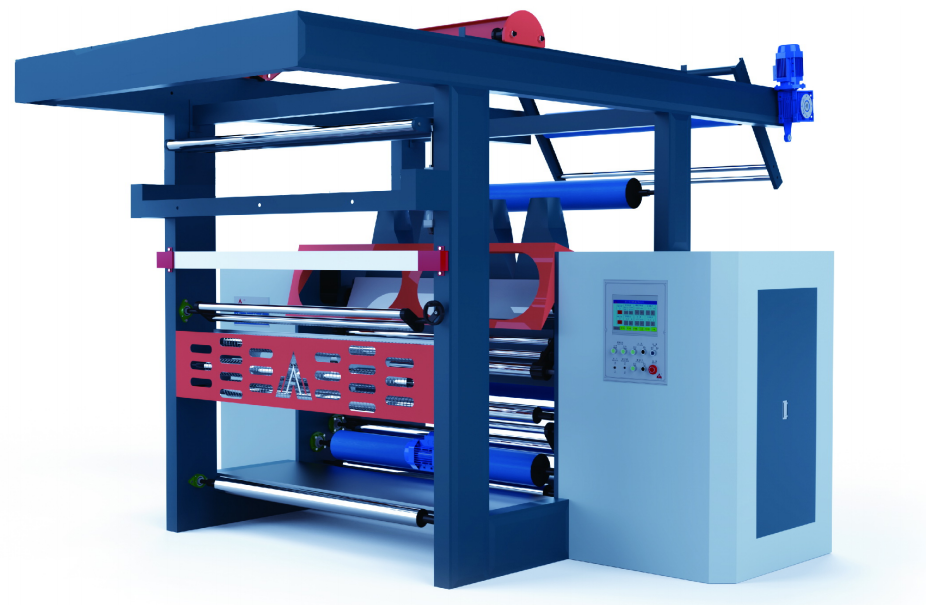

This machine is suitable for shearing of knitting fabric, curls such as short pile fabric and velvet. The surface of fabric become neat and artistic after shearing.

Main technical data

Nominal width 2200mm

Fabric speed 5～35m/min

Shearing cylinder diameter 185mm

number of shearing blades 24pcs

rotating speed 230～1150r/min

 Ledger width 125mm

Motor power (Not including blower and air compressor) 10kW

Feature

1. Shearing cylinder and main guiding roller are driven by respective motor and can be adjusted variably by inverter. Easy to change the fabric tension and speed. Adopted touch screen, digital Display.

2. The relative position of shearing cylinder and fabric table can be adjusted in length and breadth easily.

3. The bearing of shearing cylinder adopts special structure, the distance can be adjusted and high precision smooth running.

4. The traversing device of spiral blade can be chosen when shearing fabric or grinding blade.

5. Adopted seam detector, electric alarm and protection switch, safe operation.
